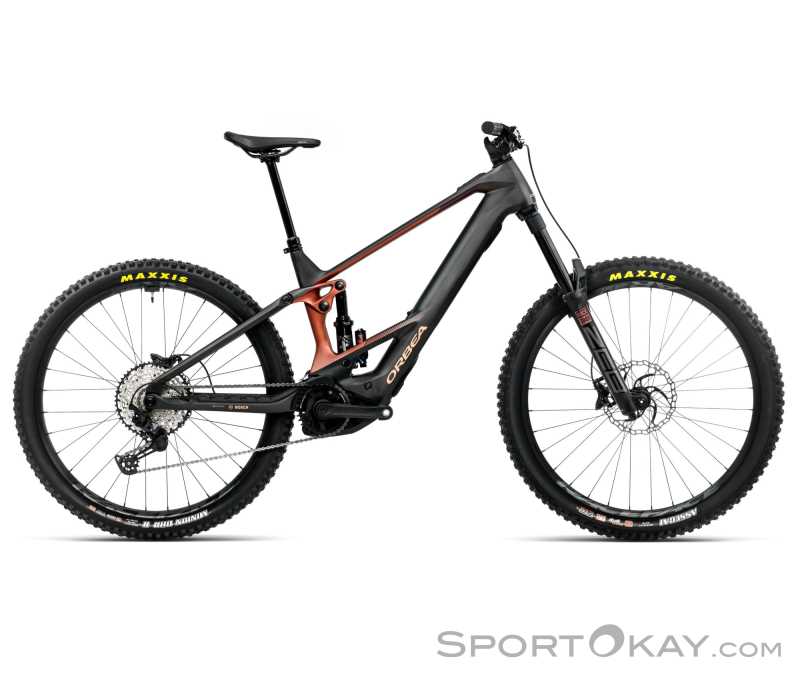

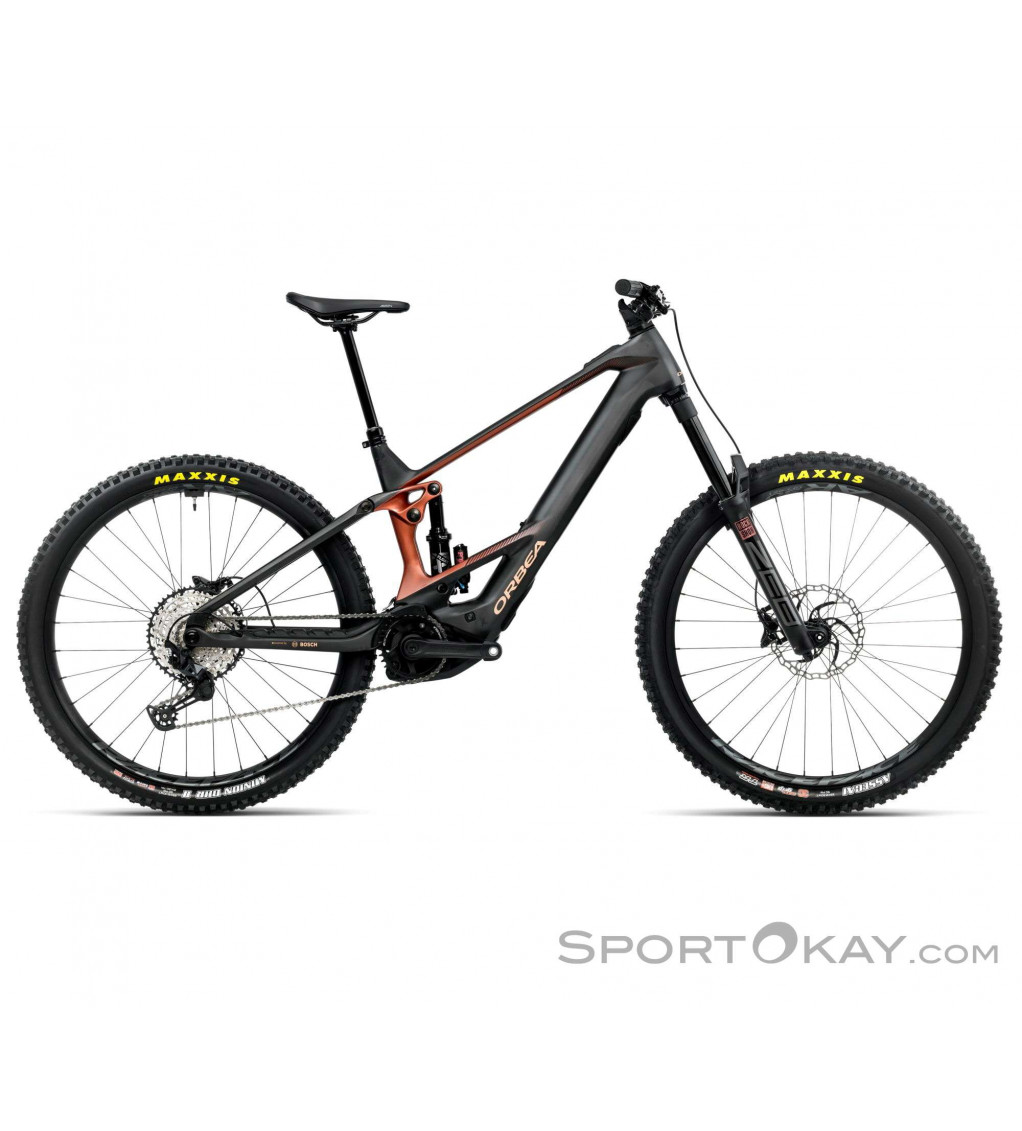

The new Wild M20 750Wh 29" 2025 is a bike where we made no compromises. Lightweight and fully optimized, it leaves our factory ready for action with the latest Bosch motor and race-ready spec. With 170 mm of front and rear travel and geometry engineered for speed, you know that no matter what challenges it faces, the Wild is ready to take on the challenge.
Highlights:
- Frame: Orbea Wild OMR 2025
- Suspension fork: RockShox ZEB Base-A2 DebonAir+ 170mm
- Damper: Fox Float X Performance Trunnion 2-Pos Evol 170mm
- Rear derailleur: Shimano SLX M7100 SGS, 1x12-speed
- Brakes: Shimano MT420, 203/203mm
- Wheelset: Race Face AR 30c Tubeless Ready
- Engine: Bosch Performance Line CX
- Charger: Bosch Charger 4A
- Battery: BOSCH Powertube 750Wh
- Display: BOSCH System Controller
"All specifications can be found under Additional Information."
IMPORTANT NOTICE: Due to the currently very limited availability of bicycle components on the market, bicycle manufacturers reserve the right to exchange components for equivalent ones. This measure allows delivery dates to be met and the availability of the bikes to be ensured. We therefore ask for your understanding if minor deviations from the stated specifications may occur. (Translated with Google Translate)
Highlights:
- Frame: Orbea Wild OMR 2025
- Suspension fork: RockShox ZEB Base-A2 DebonAir+ 170mm
- Damper: Fox Float X Performance Trunnion 2-Pos Evol 170mm
- Rear derailleur: Shimano SLX M7100 SGS, 1x12-speed
- Brakes: Shimano MT420, 203/203mm
- Wheelset: Race Face AR 30c Tubeless Ready
- Engine: Bosch Performance Line CX
- Charger: Bosch Charger 4A
- Battery: BOSCH Powertube 750Wh
- Display: BOSCH System Controller
"All specifications can be found under Additional Information."
IMPORTANT NOTICE: Due to the currently very limited availability of bicycle components on the market, bicycle manufacturers reserve the right to exchange components for equivalent ones. This measure allows delivery dates to be met and the availability of the bikes to be ensured. We therefore ask for your understanding if minor deviations from the stated specifications may occur. (Translated with Google Translate)
| A Seat tube | 415 - 435 mm |
| B Top tube horizontal | 563 - 612 mm |
| C Seat tube angle | 77,5 - 77,5 ° |
| D Head tube angle | 63,5 - 63,5 ° |
| E Chain stay | 448 - 448 mm |
| F Chainstays travel | Keine Angabe |
| G Head tube | 110 - 130 mm |
| H Wheel base | 1228 - 1282 mm |
| I Distance bottom bracket to hub axle | 22 - 22 mm |
| J Reach | 435 - 480 mm |
| K Stack | 625 - 643 mm |
| SportOkay.com number | 0432-10145 |
|---|---|
| GTIN | 8434446835964 |
| Item number | S34605X1 |
| Brand | Orbea |
| Gender | Male, Female, Unisex |
| Material | Carbon |
| Product type | Full suspension |
| Area of use | E-Bike |
| Battery type | PowerTube |
| Speed | 12-speed |
| Shock travel | 170 |
| Gears | 12 |
| Wheel size | 29 |
| Fork travel | 170 |
| Motor | Bosch Performance CX Gen5 |
| Motor power | 750 |
| Battery capacity Wh | 750 |
| Frame | Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148 |
| Fork | RockShox ZEB Base-A2 DebonAir+ 170 E-MTB specific 15X110 Boost |
| Bike colour | Diamond Carbon View (Matt) - Mars Red (Gloss) |
| Shock | Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Stem | OC Mountain Control MC20, 0º |
| Handlebar | OC Mountain Control MC30, Rise20, Width 800 |
| Grips | OC Lock On |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| chain | Shimano M6100 |
| Trigger shifter | Shimano Deore M6100 I-Spec EV |
| Brake system | Shimano MT420 Hydraulic Disc |
| Crankset | e*thirteen Helix Core |
| Wheel set | Race Face AR 30c Tubeless Ready |
| Front tire | Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra |
| Rear tire | Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra |
| Seat | Fizik Aidon 208x145mm manganese rail |
| Seat post | OC Mountain Control MC22, 31.6mm, Dropper |
| Pedals | Nicht im Lieferumfang enthalten. / Not included. / Non inclusi. |
