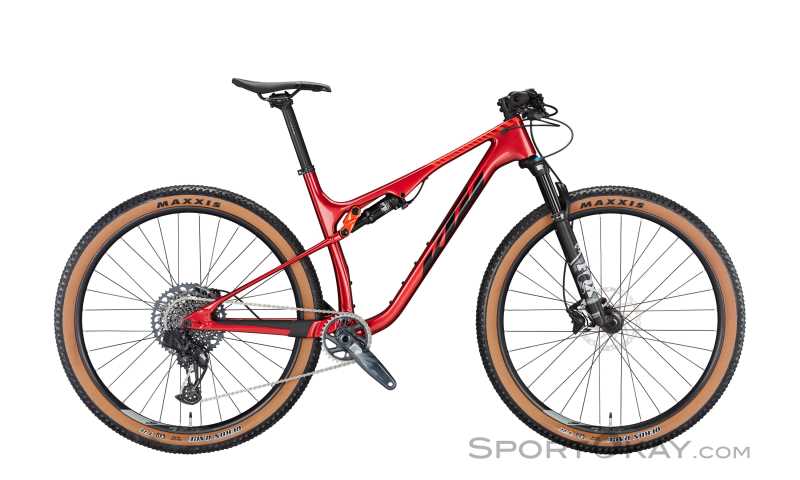

The KTM Scarp Elite Axs 29" 2023 Cross Country Bike:
The SCARP EVO II frame took KTM to the World Cup podium. Tested and proven on the world's toughest racetracks, the SCARP is moving on to the next level. The ELITE AXS model boasts a carbon frame, an aluminum rear triangle, and electronic AXS components. The fork and shock are from FOX (32 FLOAT), offer 100mm/95mm of travel, and, in conjunction with the STRAIGHT-LINE-LINK (SLL) concept, guarantee optimal handling. Master any challenge, because you'll be among the elite.
Highlights:
- Frame: Scarp 29" Premium Carbon-Alloy rear SLL95mm
- Fork: FOX 32 Float 29" Rythm, 100mm
- Damper: FOX Float DPS Performance Elite remote 190x37.5
- Rear derailleur: SRAM GX Eagle AXS, 1x12-speed
- Brakes: Shimano Deore M4100 (180/160mm)
- Wheels: KTM Line - Mavic MX801 CL, 29
- Tires: Maxxis Rekon Race EXO
- Weight according to manufacturer: 12.70 kg (Translated with Google Translate)
The SCARP EVO II frame took KTM to the World Cup podium. Tested and proven on the world's toughest racetracks, the SCARP is moving on to the next level. The ELITE AXS model boasts a carbon frame, an aluminum rear triangle, and electronic AXS components. The fork and shock are from FOX (32 FLOAT), offer 100mm/95mm of travel, and, in conjunction with the STRAIGHT-LINE-LINK (SLL) concept, guarantee optimal handling. Master any challenge, because you'll be among the elite.
Highlights:
- Frame: Scarp 29" Premium Carbon-Alloy rear SLL95mm
- Fork: FOX 32 Float 29" Rythm, 100mm
- Damper: FOX Float DPS Performance Elite remote 190x37.5
- Rear derailleur: SRAM GX Eagle AXS, 1x12-speed
- Brakes: Shimano Deore M4100 (180/160mm)
- Wheels: KTM Line - Mavic MX801 CL, 29
- Tires: Maxxis Rekon Race EXO
- Weight according to manufacturer: 12.70 kg (Translated with Google Translate)
| A Seat tube | 380 - 480 mm |
| B Top tube horizontal | 580 - 620 mm |
| C Seat tube angle | 75 - 75 ° |
| D Head tube angle | 68,5 - 68,8 ° |
| E Chain stay | 435 - 435 mm |
| F Chainstays travel | Keine Angabe |
| G Head tube | 95 - 115 mm |
| H Wheel base | 1124 - 1166 mm |
| I Distance bottom bracket to hub axle | 45 - 45 mm |
| J Reach | 423 - 458 mm |
| K Stack | 586 - 605 mm |
| SportOkay.com number | 0289-10102 |
|---|---|
| GTIN | 9008594467965 |
| Item number | 1230325100 |
| Brand | KTM |
| Gender | Male, Female, Unisex |
| Material | Carbon |
| Product type | Full suspension |
| Area of use | Cross Country & Trail |
| Speed | 12-speed |
| Brake disk size | 160 |
| Gears | 12 |
| Wheel size | 29 |
| Fork travel | 100 |
| Frame | Scarp 29" Premium Carbon-Alloy rear SLL95mm / M-0916 |
| Fork | FOX 32 Float 29" Rhythm 100mm remote 15x110 |
| Bike colour | Chrome Red |
| Shock | FOX Float DPS PerformanceElite remote |
| Headset | KTM Team drop/in 1.1/8"-1.5" |
| Stem | KTM Team MTB 7° |
| Handlebar | KTM Team flat 2X 720mm |
| Grips | KTM Team silicone |
| Rear Derailleur | SRAM GX Eagle AXS 12speed |
| Cassette | SRAM GX Eagle XG-1275 / 10-52 |
| chain | SRAM GX Eagle 12s |
| Trigger shifter | SRAM GX Eagle AXS Controller |
| Brake system | Shimano M4100 / MT410 |
| Crankset | SRAM GX Eagle DUB 34T |
| Wheel set | KTM Line - Mavic MX801 CL |
| Front tire | Maxxis Rekon Race EXO/TR 57-622 |
| Rear tire | Maxxis Rekon Race EXO/TR 57-622 |
| Seat | Selle San Marco RND Manganese Rails |
| Seat post | KTM Team 30.9/400 |
| Mounting dimensions | 190x37.5 |
| Pedals | nicht im Lieferumfang enthalten. / Not included. / Non inclusi. |
